    • easy to move and set for the compact design

      The powered cable reel is the compact design and have two wheels, so it is easy to carry around and moveable into a narrow space. Construction parts are separately, it is possible to operate the control unit is far from the camera (2-meter remote control range.)

      The operation is simple, and anyone is usable

      Using only a operation lever.

      High-Resolution Photo and High Intensity Lighting

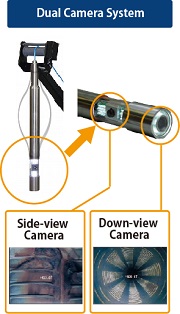

      Dual wide angle cameras, one side view and one down view, with remote switching and continuous 360 degree rotation.

      Video pictures are recorded to the internal flash memory

      Recorded movies and images are stored into the internal flash memory. It can be also stored into an external USB thumb drive. It is enable more efficient handling of data and it's easy to make any documents.

      Selectable Power Feed System for Camera

      It can be selected to supply with electric power either outlet or portable battery box.

    • CCD Camera
      Dimension Diameter:50mm(2in)O.D. / Overall Length:508mm(20in)
      Weight 18 lbs (8.2 kg)
      Material Housing:Stainless steel/ window:Pyrex glass
      Lens BK-7 glass
      Video Format NTSC
      LED
      Lighting
      High intensity, long life, shock proof LED lighting, side view and forward view
      Pressure
      Rating
      Pressure tested and waterproof to 500 p.s.i.
      Connector Kevlar-reinforced, small diameter coaxial cable. Single conductor electronic technology.
      Operating
      Temp.
      32° to 122° F (0°to 50°C)
      Adapted
      well
      diameters
      76mm~305mm(3in~12in)
      Adapted
      well
      depth
      1,000 feet (304.8 m)
      ※ Selectable 1,300 feet(396m) cable by option
      Power
      Supply
      AC100V(including adapter)
      ※ Selectable 12VDC car battery box instead of AC100V.
      Control Unit
      Cable Kevlar-reinforced, small diameter coaxial cable. Single conductor electronic technology. 5.9feet/300m
      Monitor 9-inch LCD color monitor with sunscreen viewing hood
      Monitor
      Control
      Bluetooth key board
      Depth
      Counter
      On-screen depth display measured in feet and tenths, or meters.(possible to set 0m if applicable)
      Camera
      Control
      360 degree rotation to the right and left with no external moving parts.
      Control for either downhole or side-view video profile.
      LED
      Lighting
      Five adjustable stages of brightness.
      Recorder Flash based hard drive with 16GB of internal storage and 16GB of external USB storage.
      File format
      of recorder
      MP4 (※Snap shot:JPEG)
      Extended
      output
      1 pin for microphone and 2 USB connections for key board and USB thumb drive.
      Accessories
      two-wheeled cart with extendable 36-inch boom, Centering band, carrying case for camera
      manufacturer
      manufacturer Laval Underground Surveys (U.S.・Fresono)
      http://www.lavalunderground.com/
    • The latest catalogue is released on MAR 1st, 2017!
      We have Japanese version catalogue only..Sorry!


    • Please click on the above picture if you want to download our catalogue.
      The other window is opened for PDF.
      (data:2MB,print size mixed:A4(210X297mm)x4 pages & A3(297x420mm)x1 page)
        ※ You should need PDF viewer.
        ※ PDF can be saved by renamed.
        ※ Adobe Acrobat reader is able to free download here to click.

    • These photos are automatically replaced every five seconds.

      • on the van
      • on the truck
      • small footing
      • narrow space
      • truck cannot be in
    • Auxiliary Lighting System

      TriLight is an Auxiliary Lighting System to supplement the standard lighting of the R-Cam 1000.

      Specialties 3 military grade dive lights
      (Powered via easily accessible AA batteries & 20 hours of light)
      4 high intensity Nichia LEDs in each light
      (Lamp Life of 10,000+ hours )
      38 lumens per Light

      TriLight on Side View Camera Well Camera Lighting
      SC-166 Borehole Camera

      The SC-166 will work with all R-Cam 1000 system
      The itme is only DOWN view.

      Dimension Diameter:42mm(1.66in)O.D. / Overall Length:42mm(16.5in)
      Weight 9 lbs (4.1 kg)
      Material Housing:Stainless steel/ window:Pyrex glass
      Lens BK-7 glass
      Pressure
      Rating
      Pressure tested and waterproof to 500 p.s.i.
      Operating
      Temp.
      32° to 122° F (0° to 50° C)
      Adapted
      well
      diameters
      50mm~250mm(2in~10in)
      DC5150 Deep Well Camera
      Dimension Diameter:60mm(2.35in)O.D. / Overall Length:616mm(24.25in)
      Weight under 14 lbs. (6.5 kg)
      Material Housing:Stainless steel/ window:Pyrex glass
      Lens Scratch-proof sapphire glass viewing port
      Pressure
      Rating
      Pressure tested and waterproof to 2,500 psi
      Operating
      Temp.
      32° to 150° F (0°to 65°C)
      Adapted
      well
      diameters
      76.2mm~762.0mm (3in~30in)
      Adapted
      well depth
      1,524m(5,000feet)
      SC-System

      Portable Camera System for Water Wells and Boreholes from 2 inches (5cm) to 10inches (25cm).
      *It is only down view.

      Camera SC-166 or R-CAM1000XLT
      Control
      Unit
      Built-in winch
      Monitor 7-inch LCD Color Monitor
      *including RCA Composite Video Output
      Winch
      Cable
      Manually Operated Winch(cable length 107m or 152m)
      Accessories Including depth counter Tripod
      Power
      Supply
      AC100V(including adapter)
      ※ Selectable 12VDC car battery box instead of AC100V.
      DW-System

      Portable Camera System for water wells and boreholes. Designed to reach depths of 450m(DW-1500) & 610m(DW-2000).

      Camera SC-166 or R-CAM1000XLT
      Control
      Unit
      R-CAM Control unit
      Monitor 9-inch LCD Color Monitor
      Recorder Flash based hard drive with 16GB of internal storage and 16GB of external USB storage.
      Winch
      Cable
      Adjustable Level Wind System(457m or 609m)
      Accessories Including depth counter Tripod
      Power
      Supply
      AC100V(including adapter)
      ※ Selectable 12VDC car battery box instead of AC100V.
    • Comparative Table of Camera
      Model R-CAM1000XS SC-166 Slim Camera DC-5150 Deep Well Camera
      Camera
      Dims.
      5.1cm(O.D.) 50.8cm(L) 4.2cm(O.D.) 42.0cm(L) 6.0cm(O.D.) 61.6cm(L)
      Weight 8.2kg 4.1kg 6.5kg
      Adapted
      well
      diameters
      76mm~305mm 50mm~250mm 76mm~762mm
      Adapted
      well
      depth
      304.8m(*396.2m) 304.8m(*396.2m) 1,524m
      Pressure
      Rating
      35.2kgf/cm2(500psi) 35.2kgf/cm2(500psi) 175.8kgf/cm2(2,500psi)
      Operating
      Temp.
      0~50℃ 0~50℃ 0~65℃
      Camera
      Side view (360degree rotation)
      Down View.
      DOWN view Side view (360degree rotation)
      Down View.
      Cabel
      Length
      107m/SC-350 *1
      152m/SC-500 *1
      300m/R-CAM1000 *2
      396m/R-CAM1300 *2
      457m/DW-1500 *2
      609m/DW-2000 *2
      107m/SC-350 *1
      152m/SC-500 *1
      300m/R-CAM1000 *2
      396m/R-CAM1300 *2
      457m/DW-1500 *2
      609m/DW-2000 *2
      1219m/Model40 *3
      1524m/Model50 *3
      *1 -- It is need SC System which work only down view and
              use manually operated winch
      *2 -- It is need R-CAM Control Unit.
      *3 -- It is need CU500 Control Unit.
      Comparative Table of Camera System
      System R-CAM System DW System SC System Deep Well System
      Model R-CAM1000
      R-CAM1300
      DW-1500
      DW-2000
      SC-350
      SC-500
      SKID MOUNTED
      Specialties Functionality and Portability. Simple! Low price!
      for small work
      for extensive work
      c
      a
      m
      e
      r
      a
      SC-166 ○*4 ○*4 ○*4 ×
      R-CAM
      1000XLT
      ○*4 ×
      DC5150 × × ×
      Note: *4 -- It works only down view.
      Control
      Unit
      R-CAM Control Unit Built-in winch CU500
      Winch
      TYPE
      Wind System・
      two-wheeled cart
      Adjustable Level Wind System Manually Operated Winch( Adjustable Level Wind System
      Winch
      Model
      /
      Cable
      Length
      R-CAM1000/300m
      R-CAM1300/396m
      DW-1500/450m
      DW-2000/600m
      SC-350/100m
      SC-500/150m
      Model10/ 457m
      Model20/ 762m
      Model40/1,219m
      Model50/1,524m
      Accessories All parts are mounted on a small, two-wheeled cart with extendable 36-inch boom. Depth-Counter Tripod Assembly. All the necessary components, mounted on skid plate.
      System
